LASER + CNC MATRIX FIXTURE PLATE ─ 3D Printable CAD Files

SKU: VM-60001

€ 4,90 EUR
€ 29,00 EUR
€ 4,90 EUR
Tax included. Shipping calculated at checkout.

DIGITAL CAD FILES ONLY ─ NO PHYSICAL PRODUCT

Precision Positioning System for Laser and CNC Applications

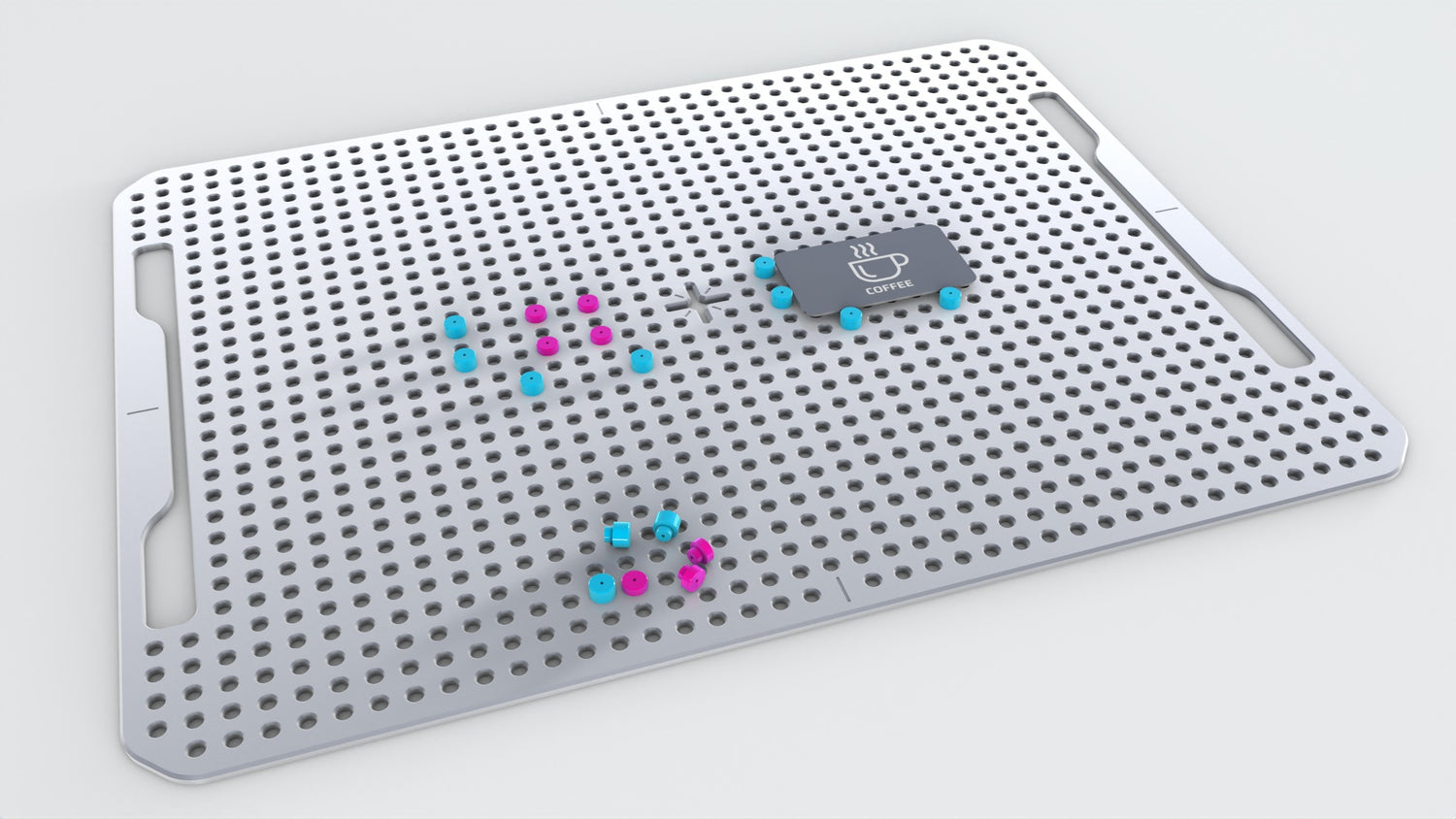

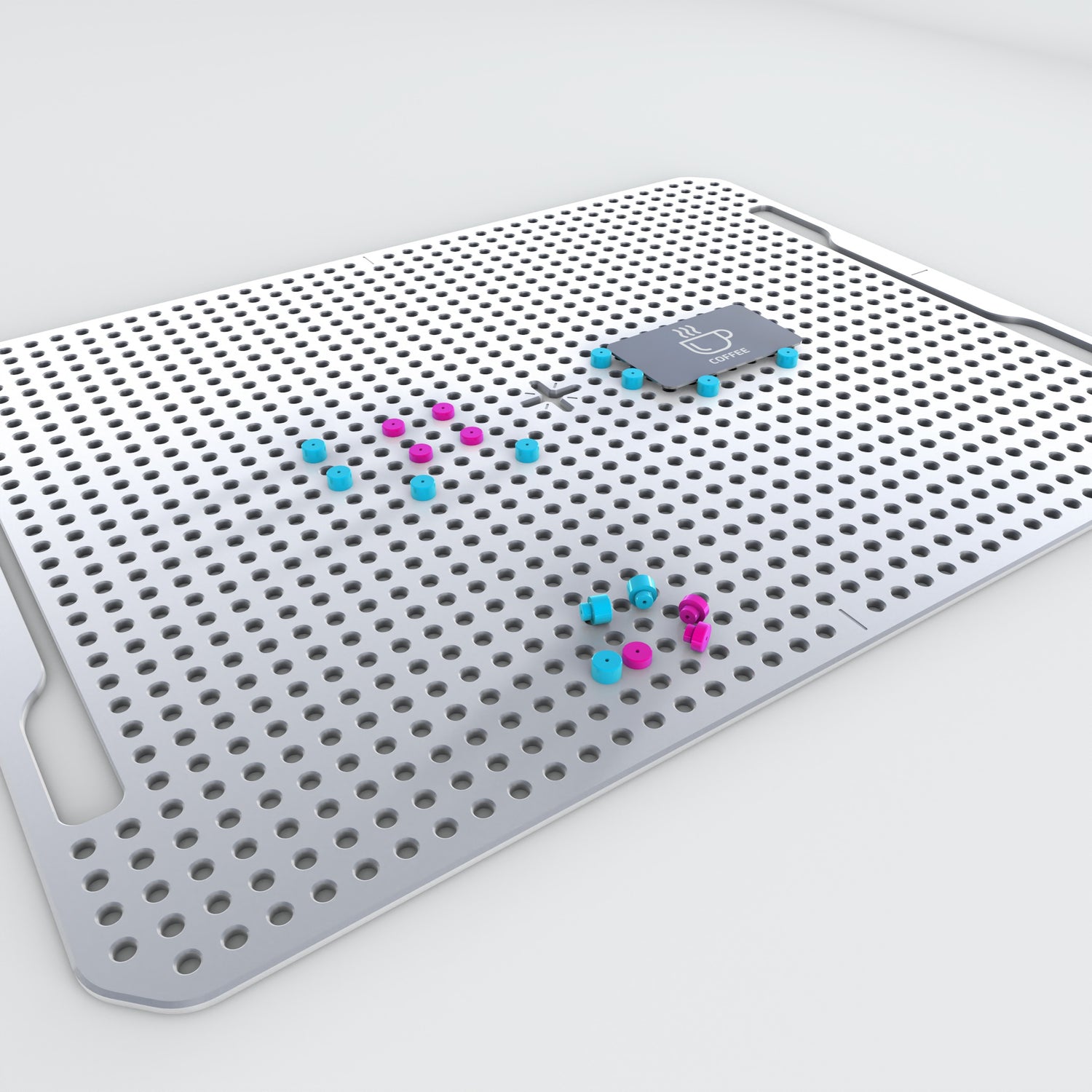

The LASER & CNC MATRIX FIXTURE PLATE (3D Printing/CNC CAD Files) is a modular positioning system for laser machines, CNC routers, engraving machines, and other precision manufacturing applications.

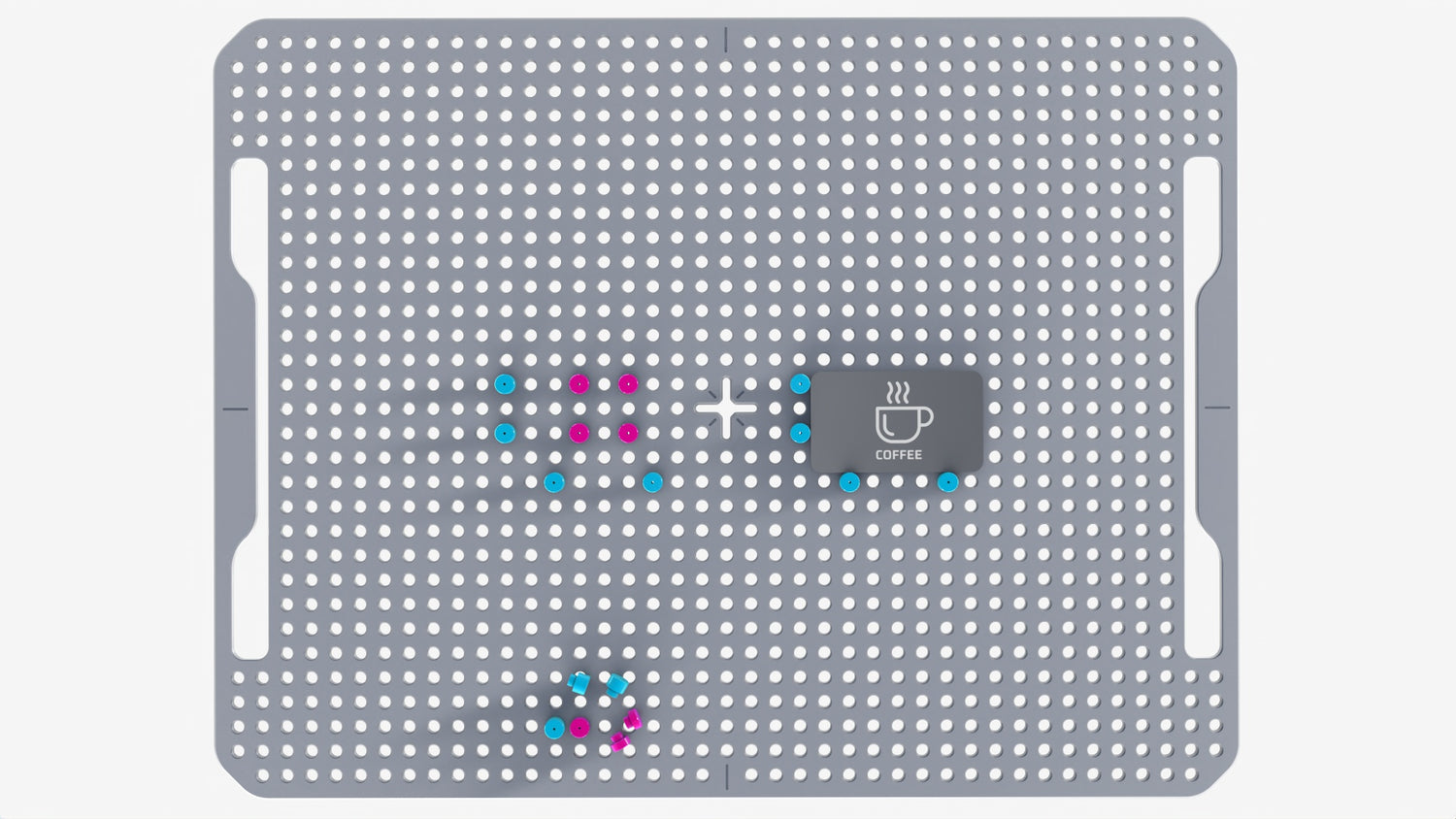

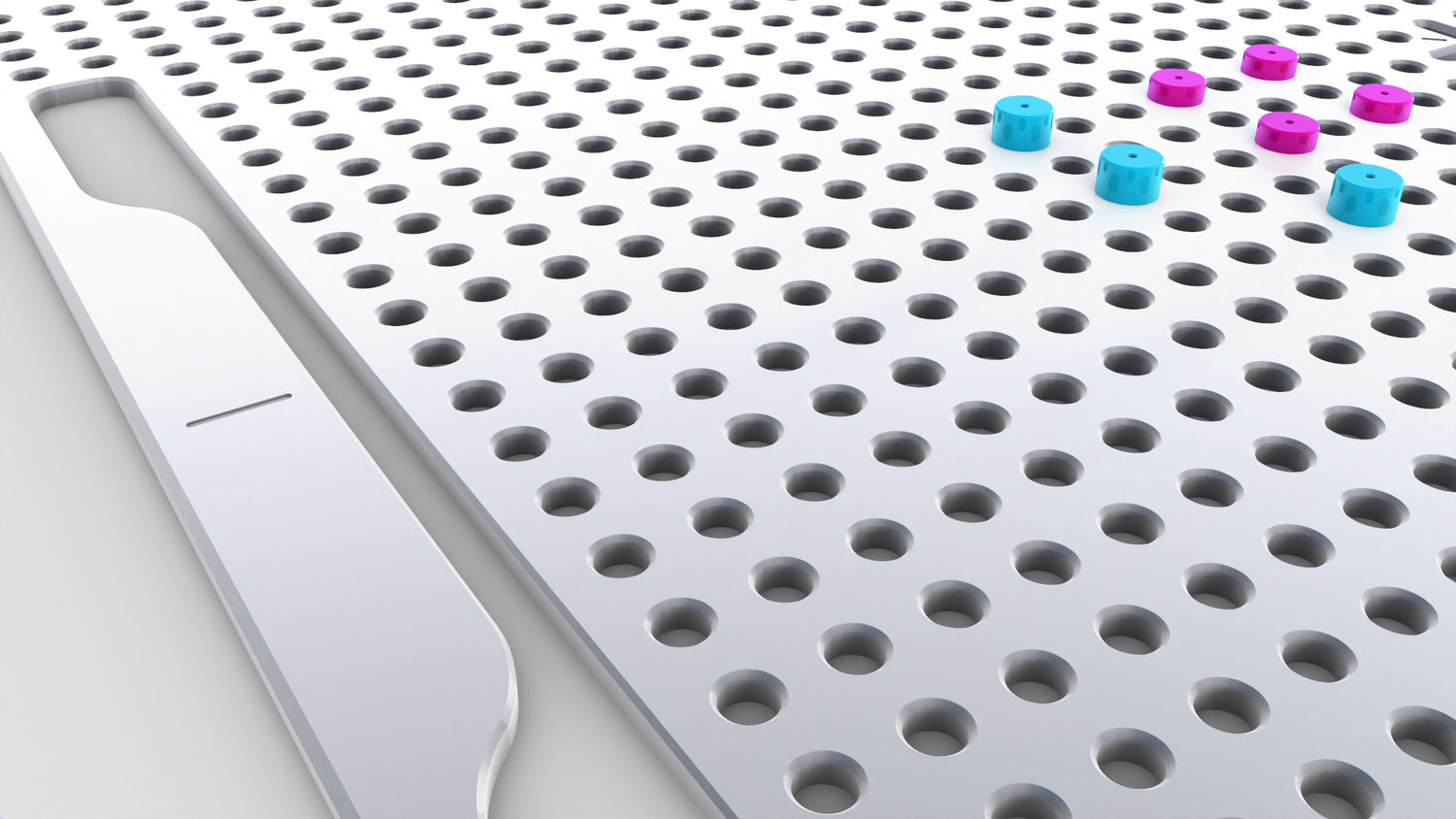

The uniform 10 mm hole grid allows workpieces to be quickly aligned and positioned with repeatable accuracy using positioning pins. This enables precise setups without having to measure and manually align each workpiece again.

The CAD file-set includes two different pin heights:

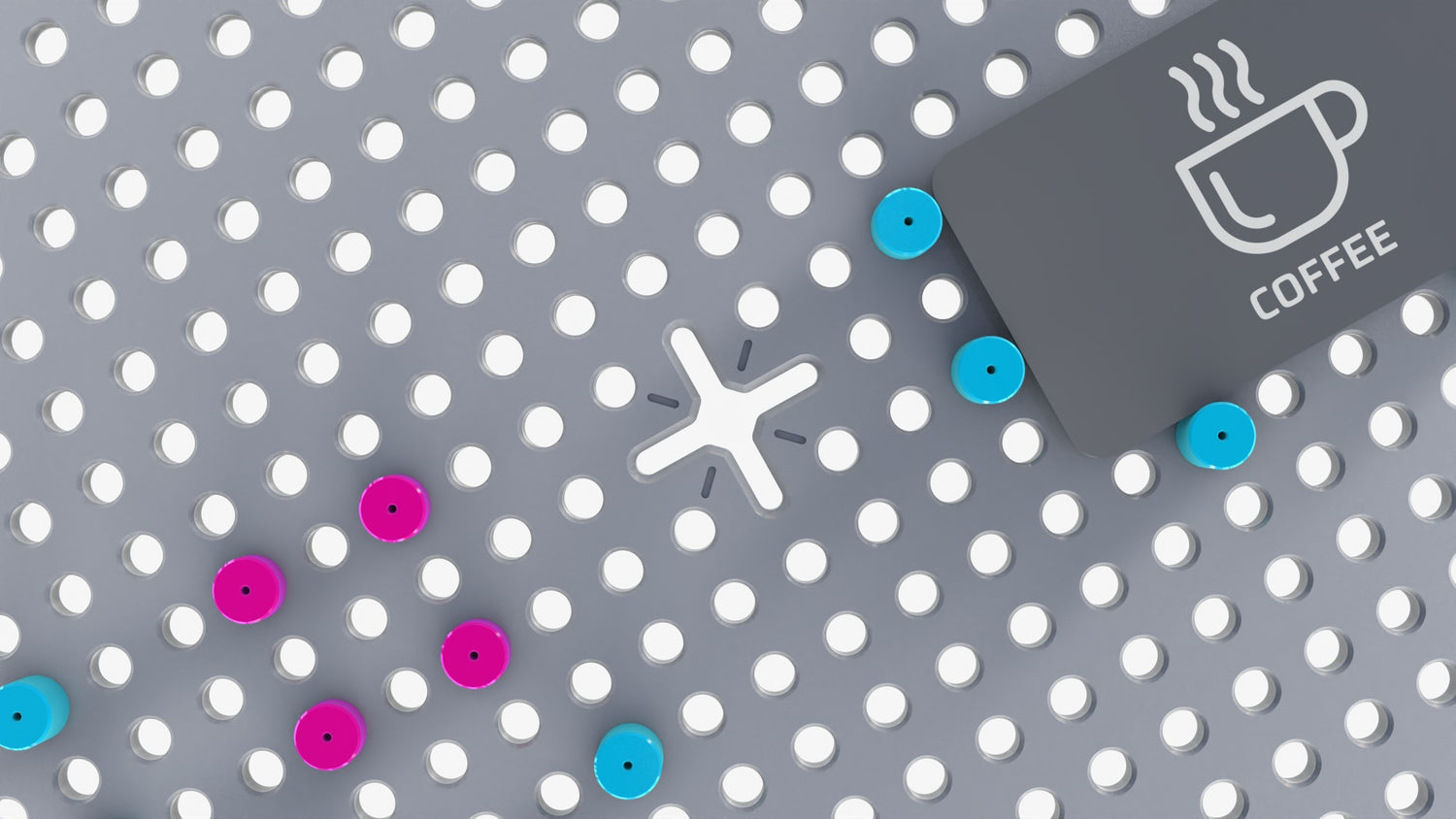

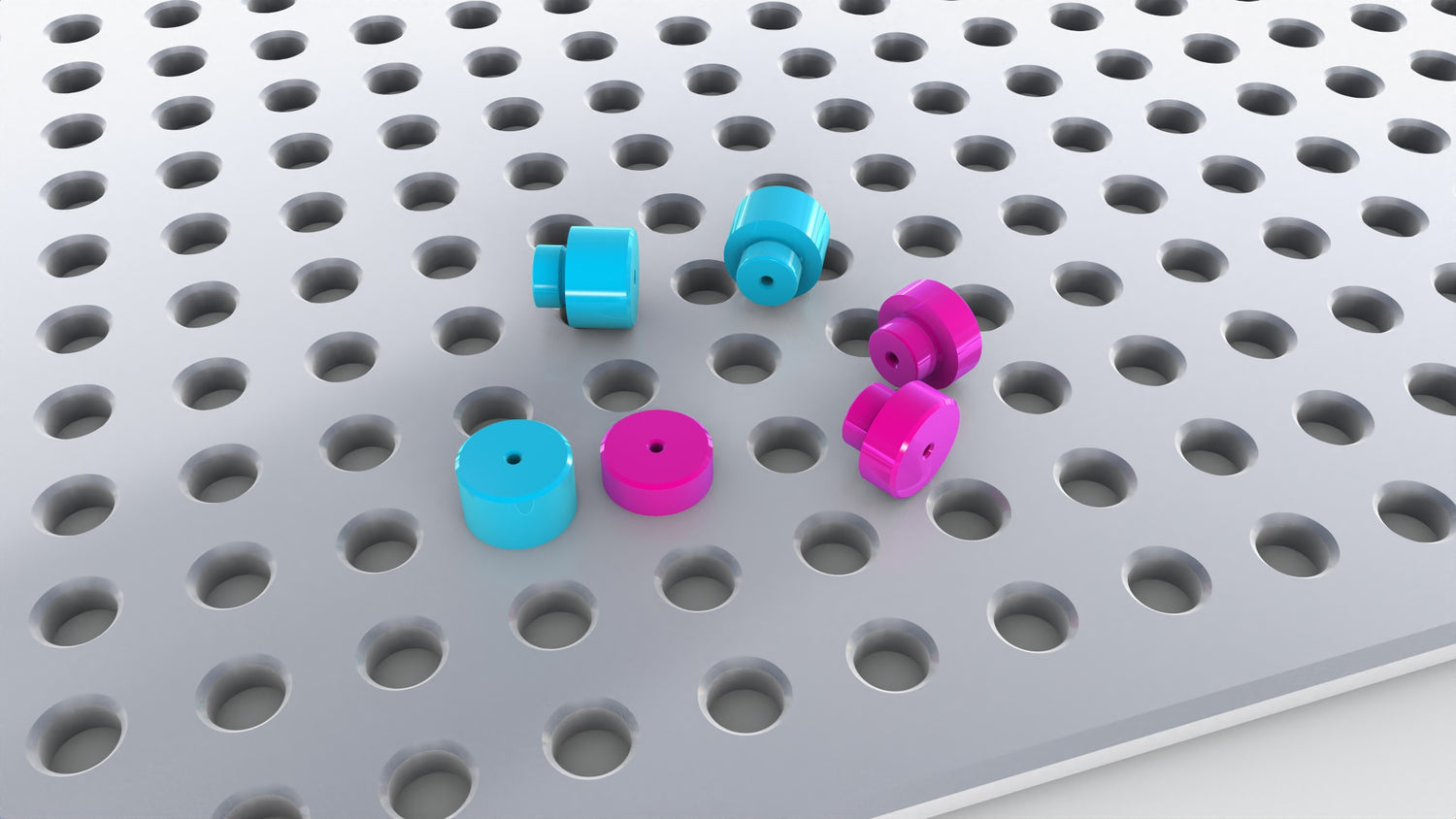

  • 3 mm support pins lift the workpiece above the plate and provide a stable support surface.
  • 5 mm positioning pins serve as lateral stops for precise right-angle alignment.

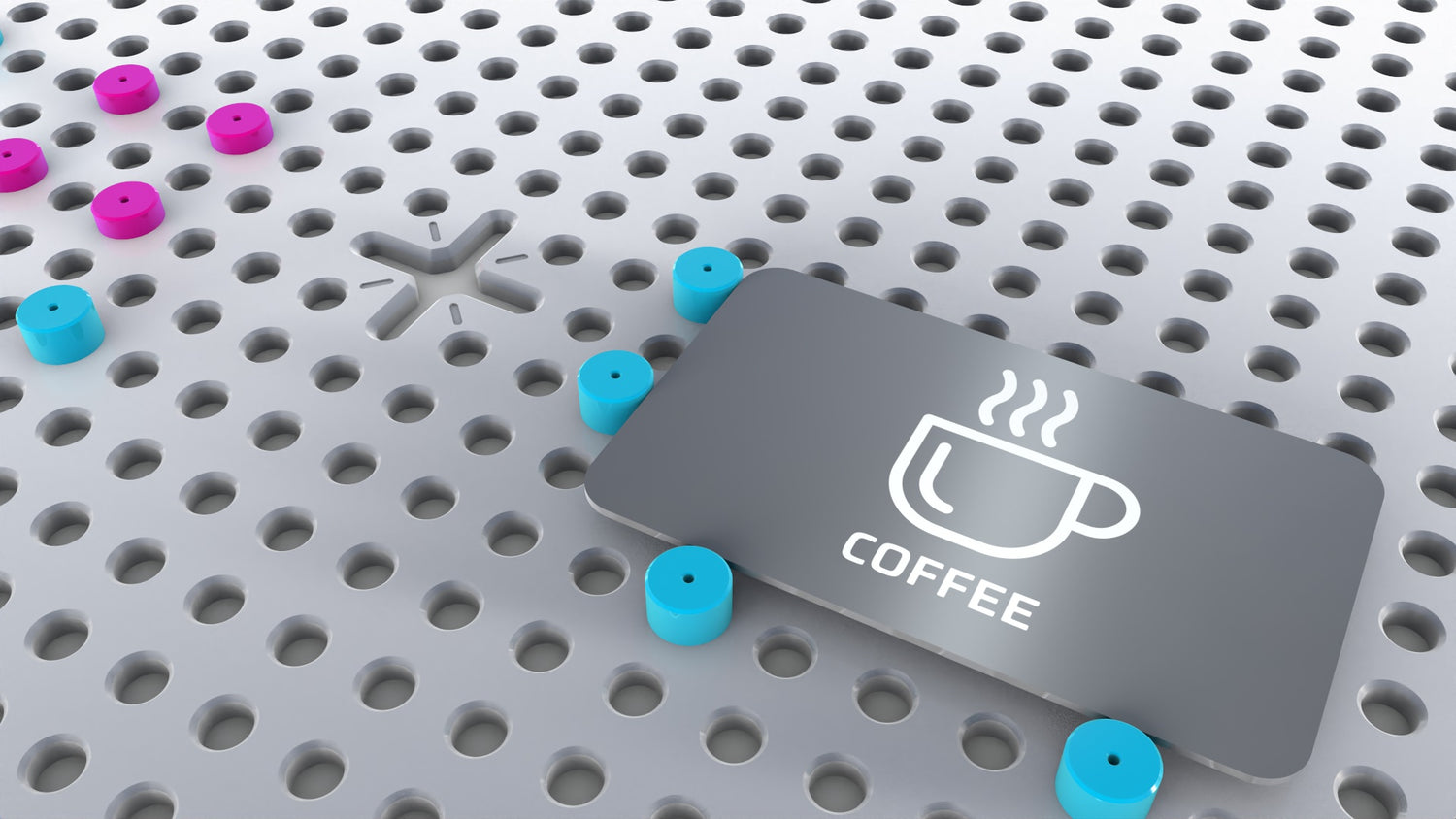

When combined, the workpiece rests on the 3 mm pins, while the taller 5 mm pins define its exact position. This suspended setup creates clearance between the workpiece and the matrix plate while allowing identical workpieces to be positioned quickly and with repeatable accuracy.

Two Plate Versions

3 mm Matrix Plate

This version is designed for use with the standard support and positioning pins. Depending on the intended application and manufacturing process, the pins can be made from aluminum or plastic.

5 mm Matrix Plate with Optional M5 Threads

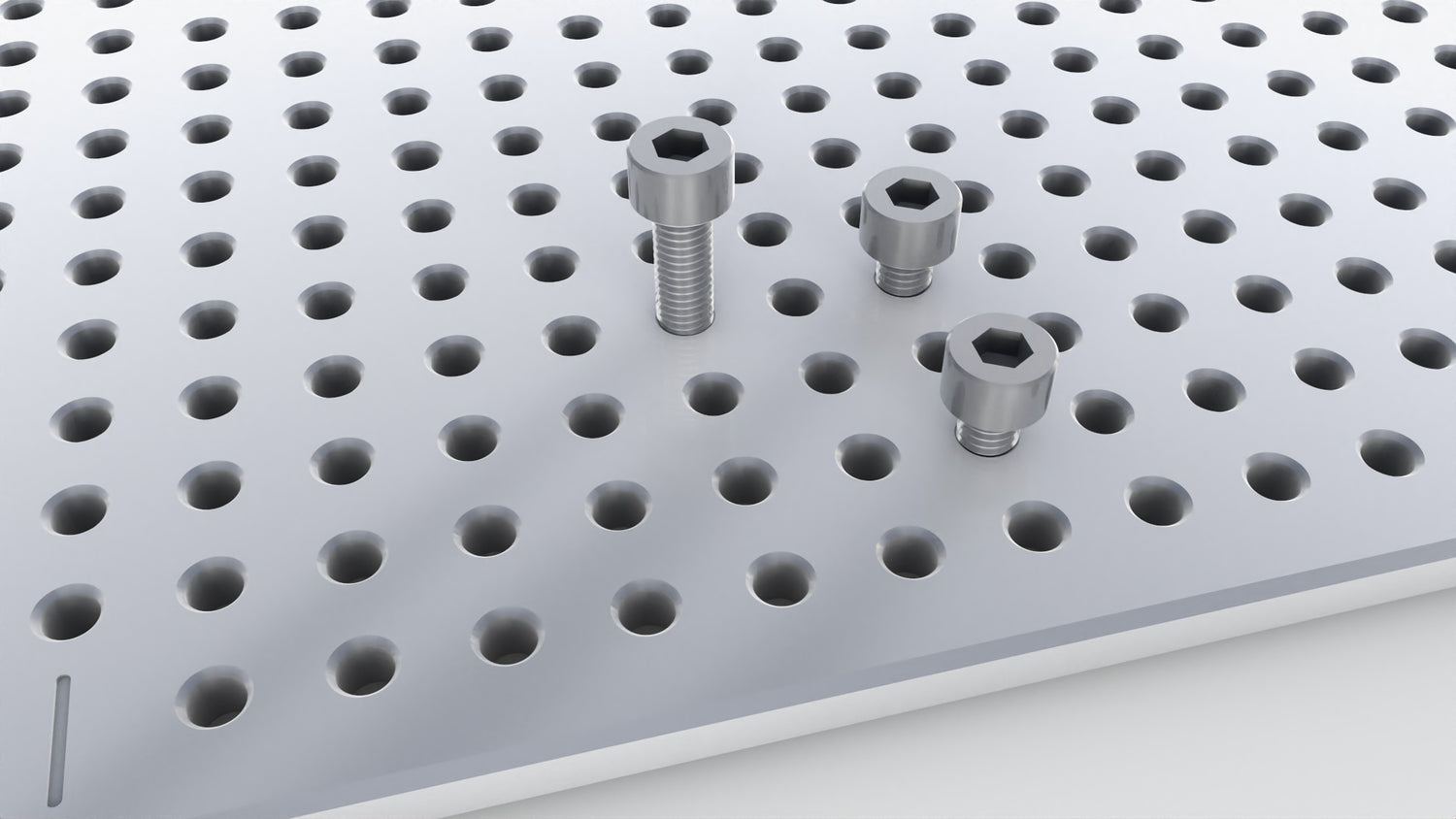

In this version, all grid holes have a 4.2 mm tapping diameter. This allows an M5 thread to be cut into any required position. Additional stops, clamps, brackets, and other threaded components can therefore be mounted wherever needed.

The CAD files are intended for independent manufacturing or production by a CNC machining or 3D printing service provider. Manufacturing costs, dimensional tolerances, materials, machine compatibility, and the quality of the finished components depend on the selected manufacturing process and service provider.

When used with a laser machine, the pin material must be suitable for the laser type, power level, generated heat, and workpiece material being processed.

INCLUDED CAD FILES

  • Matrix Plate 3mm Pin version (.stp)
  • Matrix Plate 5mm M5 version (.stp)
  • Pin 3mm (.stp)
  • Pin 5mm (.stp)


SIZE

  • 420 × 320 × 3/5 mm

RECOMMENDED MANUFACTURING SERVICE

Craftcloud

DIGITAL CAD FILES ONLY

THIS IS A DIGITAL DOWNLOAD. NO PHYSICAL PLATE, PINS OR OTHER COMPONENTS WILL BE SHIPPED.

LICENSE & USAGE DISCLAIMER

By purchasing this product, you receive a non-exclusive, non-transferable license to use the included CAD files for personal and commercial manufacturing purposes. You may manufacture physical components from the files for your own use or incorporate them into your own projects and products. The CAD files themselves, including modified, converted, or derived versions, may not be shared, redistributed, sublicensed, uploaded, published, or resold in digital form. The purchase does not transfer ownership or copyright of the CAD models. All intellectual property rights remain with VIVRE-MOTION. The buyer is responsible for verifying dimensions, tolerances, material suitability, machine compatibility, and operational safety before manufacturing or using any component. VIVRE-MOTION assumes no liability for manufacturing defects, material failure, machine damage, personal injury, or other damages resulting from the production or use of the files.
